UNITED STATES DEPARTMENT OF LABOR
MINE SAFETY AND HEALTH ADMINISTRATION
COAL MINE SAFETY AND HEALTH
REPORT OF INVESTIGATION
Surface of Underground Coal Mine
Fatal Machinery Accident
August 16, 2000
APPENDIX B
Figure 3

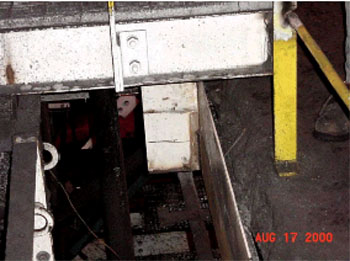

This image shows the perspective from the left side of Figure 2, viewing the area beyond the right side of that image.
The bracket being welded by the victim is visible in the center of this image.
The catwalk is shown above the bracket, with the chute and tie off point on the left.
