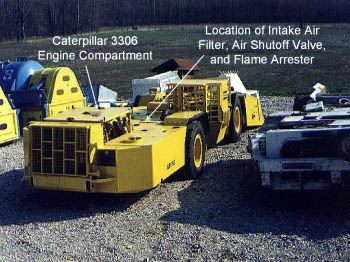

    Shown are the locations of the 3306 Caterpillar engine, intake air filter, air shutoff valve, and flame arrester on the machine.
