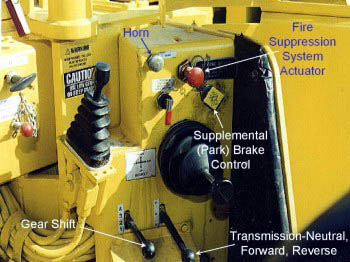

    Shown are close-up views of the controls in the previous slide. In addition to service brakes, diesel equipment is required to be equipped with a supplemental braking system (park brake) with a means of activation in the operator’s compartment. This is shown along with the actuator for the fire suppression system, the warning device (horn), and the transmission directional and gear shift levers located to the right of the operator in the operator’s compartment.

    The machine must be equipped with a neutral start feature to prevent inadvertent movement of the machine during startup. The neutral start on this machine is achieved through control of pressure to the transmission control valve declutch spool.
