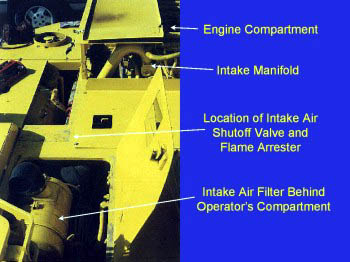

Shown is a top view of the machine from beside the operator’s compartment towards the engine compartment. Components of the intake air system of the machine are shown.
