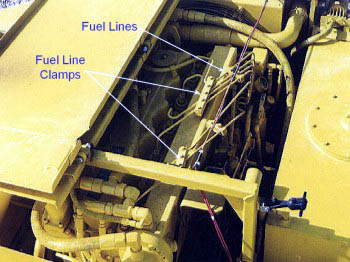

    This engine compartment view shows fuel injector lines and clamps. Fuel lines need to be properly installed to provide mechanical protection and clamped to prevent damage from vibration.

    NOTE: Metal fuel lines which are part of the engine itself are typically accepted as provided by the engine manufacturer. Check routing and securing of supply and return lines between the tank and the engine.
