Mechanically Anchored Resin-Assisted Bolts

Back to Main Menu | Glossary

Click on Image to Enlarge

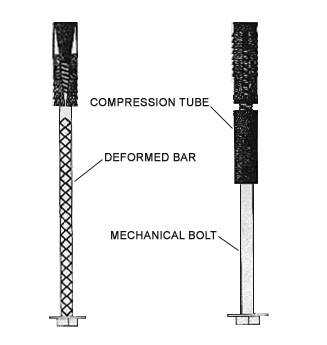

The troubleshooting charts in this section list a number of problems commonly associated with mechanically anchored resin-assisted bolts. Below each problem are several of the most likely reasons for the occurence of those problems. In this manual, mechanically anchored resin bolts are defined as headed, threaded bolts that use grout for primary anchorage, and utilize a mechanical expansion anchor for tensioning and initial anchorage. There are numerous variations of this bolt type (see figure on left), which all combine the excellent anchorage of grouted bolts with the quick installation time of mechanical bolts.

Mechanically Anchored Resin-Assisted Bolts often have the same installation problems encountered as with Mechanically Anchored Bolts; however, the inclusion of grout can make some problems more pronounced. The following is a list of the Mechanically Anchored Bolt problems that are the most typical when grout is used:

• Spinners-Anchor Will Not Set
• Bolt Bends On Insertion-Can't Insert
• Low Tension/High Torque
• Erratic Or Poor Tension/Torque
• Bolt Breaks On Installation
• Anchor Breaks On Installation

When these problems are encountered, first install several bolts out of pattern without grout. If the problem still occurs, then look up the problem in the Mechanically Anchored Bolt section and follow the procedure that is listed. If the problem does not occur when grout is not used, then the problem is likely due to one of the following causes from Appendix E.

• E.1 Bail/Support Nut Too Strong
• E.2 Bolt Insertion Too Fast
• E.3 Grout Lubricating Borehole
• E.4 Grout Cartridge Material Interferes With Anchor Performance
• E.5 Anchor design

Because of the difficulty in detecting the cause of installation problems and the numerous designs of systems available, it is often best to contact the manufacturers of the bolts and the grout when these problems become prevalent. The manufacturers have the most information regarding their products and most likely have encountered these same problems at another site.
