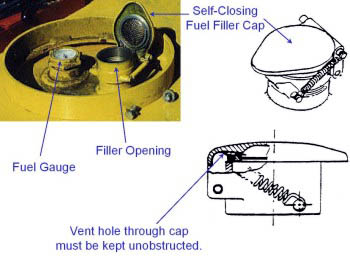

Here is a close-up view of fuel filler cap, fuel filler opening, and fuel gauge. The fuel filler cap is self closing (spring loaded) and needs to be properly maintained. The inside of the fuel cap contains a vent opening to maintain atmospheric pressure inside the tank.
