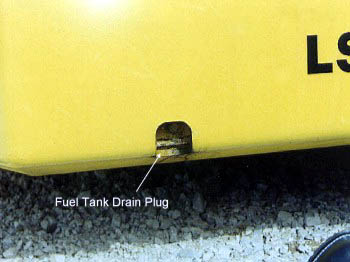

The fuel tank is equipped with a drain plug which is located at the bottom of the fuel tank near the rear of the machine. The plug must be accessible to maintenance personnel and locked in place when installed (NPT pipe plugs are considered self-locking). |
 |  |  |
