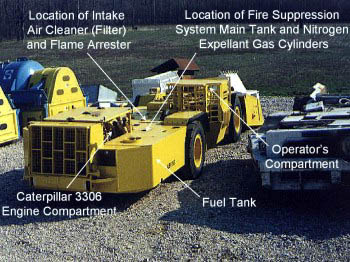

    This view shows the right side from the right rear of the Wagner Model LST-5S scoop.

    There are many requirements for the safe design and use of permissible diesel equipment. These include various safety features in the operator’s compartment, the engine and it’s air intake and exhaust system, and fire suppression, electrical, and fuel systems. This shows the approximate location of some of these devices. The slides that follow will continue to show locations of components from various angles.
