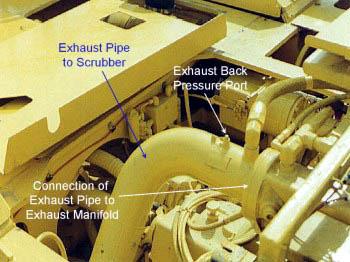

This shows a close-up side view of the connection of the exhaust pipe to the engine exhaust manifold, the exhaust pipe extending to the scrubber, and the plugged port in the exhaust pipe for the purpose of conducting exhaust back pressure tests. A side view of the port is shown in the next photo.
